We offer robust, reliable and extremely durable force sensors (force transducers or load cells) for the measurement of static, quasi-static and dynamic tension and compression forces, which are suitable for applications in the most varied embodiments and dimensions. There are three main types: tensile force, compression force or tensile and compression force sensors. On top of that we provide force sensors with two or three measuring ranges as so-called multi-component sensors, or in a double bridge version (plausibility circuit). An optional version in 6-wire technology or advanced IP protection class is also available for the majority of our sensors. Furthermore, we manufacture special sensors, such as load pins, load bearings, stress sensors, or customized sensors, according to your requirements. Additionally, our product range includes a wide choice of accessories, such as force transmissions, thrust pieces, rod ends, fixing flanges, measuring cables, measuring amplifiers, ...

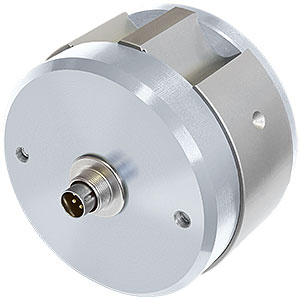

| Type: | K-2618 |
|---|---|
| Measuring Range: | 30..300 kN |
| Accuracy Class: | 1 |
| Range of Application: | Force Sensor , e.g. for Measurement of Gripping Power in Lathe Chucks |
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 5-pin female cable connector and free soldered ends |
| PDF Datasheet: | 080831a_K-2618_en.pdf |
| PDF Operation Manual: | - |
| CAD Files: | DXF IGS; STP |
