Our manufacturing program includes torque sensors, force sensors, load cells as well as the corresponding measured data evaluation units. Furthermore customized system solutions and test benches for the acquisition of speed, torque, force and characteristics; special sensors and strain gauge installation. We offer DAkkS and proprietary calibrations for all of our sensors and devices. With the purchase of a new sensor a test certificate, which records the traceable measurement, is provided as standard.

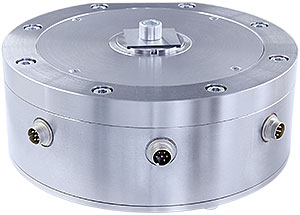

| Type: | M-2230 |
|---|---|
| Measuring Range: | 100 N·m / 100 N·m / 100 kN |
| Accuracy Class: | 0.2 |
| Range of Application: | Screw Testing: Thread Friction Torque, Screw Head Friction Torque and Preload |
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 6-pin female cable connector and free soldered ends |
| PDF Datasheet: | 080975_M-2230_en.pdf |
| PDF Operation Manual: | - |
| CAD Files: | DXF IGS |
